Product Details
Place of Origin: Shenzhen, China
Brand Name: COMLED
Certification: CE ROHS SAA and C-Tick (RCM)
Model Number: ZL-PSBLP44-5FT-CES
Payment & Shipping Terms
Minimum Order Quantity: 300pcs
Price: US$60.6-US$72.72 /piece
Packaging Details: Package: 163*40*30cm/ 9pcs, 20'GP/ 1296pcs
Delivery Time: 7-30 days(sample around 3-7 days)
Payment Terms: T/T
Supply Ability: 10000pcs per month
Rated Power: |
40 - 44W |
Protection: |
IP65 / IK08 |
Optics: |
Polycarbonate Milky Diffuser |
Color Temperature(cct): |
3000K 4000K 5000K 6000K |
Package Dimensions: |
1580*116*92mm |
Housing Color: |
Gray + Milk White |
Warranty(Year): |
5 |
Lamp Luminous Flux(lm): |
6160 |
Emergency: |
Yes |
Sensor Dimming: |
Yes |
Rated Power: |
40 - 44W |
Protection: |
IP65 / IK08 |
Optics: |
Polycarbonate Milky Diffuser |
Color Temperature(cct): |
3000K 4000K 5000K 6000K |
Package Dimensions: |
1580*116*92mm |
Housing Color: |
Gray + Milk White |
Warranty(Year): |
5 |
Lamp Luminous Flux(lm): |
6160 |
Emergency: |
Yes |
Sensor Dimming: |
Yes |

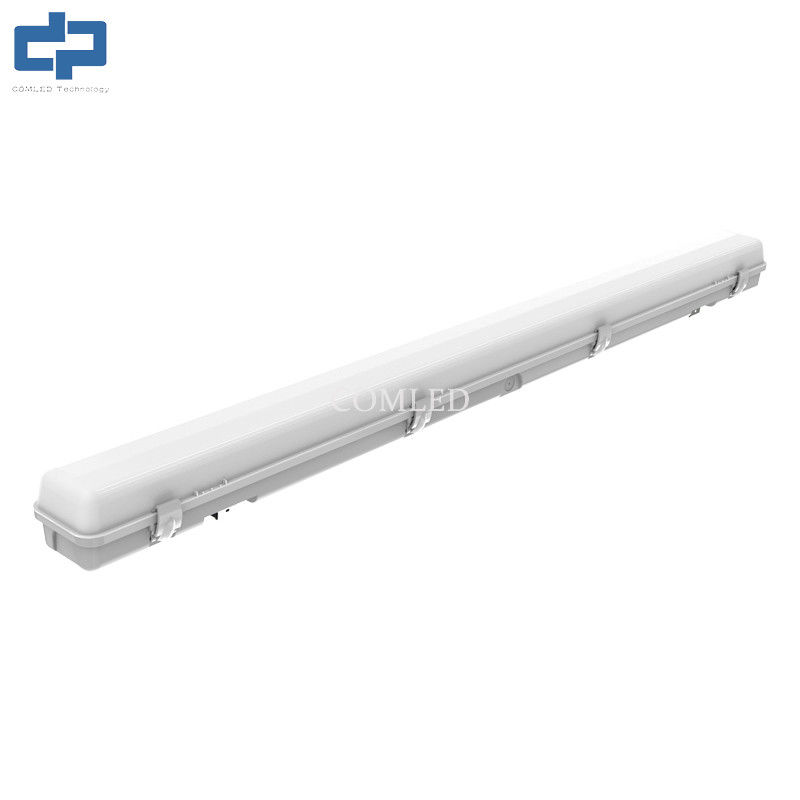

The 5FT Emergency LED Weatherproof Batten is designed to offer reliable, long-lasting illumination in harsh environments. Constructed with a high-grade PC base and milky PC diffuser, it ensures exceptional waterproof performance with an IP65 rating, making it perfect for use in outdoor or industrial spaces like tunnels, railway stations, parking lots, and electrical rooms. Featuring the latest SMD2835 LED technology, it provides high lumen output while minimizing glare for better visual comfort. This batten light comes with multiple options, including sensor dimming, emergency backup, and linkable connections, allowing it to meet the diverse needs of various lighting projects.
Durable Construction: Made with high-quality PC base and milky PC diffuser, this light is rated IP65/IK10, providing excellent protection against water, dust, and impact.
High Efficiency: Powered by SMD2835 LED chips with an impressive luminous efficacy of 220lm/w, this fixture ensures maximum energy efficiency and brighter illumination.
Enhanced Light Transmission: The PC diffuser offers a high transmittance rate of 86%, reducing glare and providing soft, uniform light distribution.
Flexible Installation Options: This light can be surface-mounted or suspended, giving you the flexibility to adapt it to various installation environments with ease.
Emergency Function & Quick Maintenance: The optional emergency battery backup ensures reliable operation during power outages, with a specially designed housing for quick and easy battery maintenance.
| Model | Input voltage | Watt | Sensor Dimming standby | Emergency |
| ZL-PSBLP18-2FT-CN | AC110V or 230V | 18w | x | x |
| ZL-PSBLP36-4FT-CN | AC110V or 230V | 36w | x | x |
| ZL-PSBLP44-5FT-CN | AC110V or 230V | 44w | x | x |
| ZL-PSBLP18-2FT-CS | AC110V or 230V | 18w | 100% / 20% /OFF | x |
| ZL-PSBLP36-4FT-CS | AC110V or 230V | 36w | 100% / 20% /OFF | x |
| ZL-PSBLP44-5FT-CS | AC110V or 230V | 44w | 100% / 20% /OFF | x |
| ZL-PSBLP18-2FT-CE | AC110V or 230V | 18w | x | >3hrs@3.6W |
| ZL-PSBLP36-4FT-CE | AC110V or 230V | 36w | x | >3hrs@3.6W |
| ZL-PSBLP44-5FT-CE | AC110V or 230V | 44w | x | >3hrs@3.6W |
| ZL-PSBLP18-2FT-CES | AC110V or 230V | 18w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-PSBLP36-4FT-CES | AC110V or 230V | 36w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-PSBLP44-5FT-CES | AC110V or 230V | 44w | 100% / 20% /OFF | >3hrs@3.6W |
| Note: x -No this function | ||||
PHOTOMETRIC:
| Luminous Efficacy | 110-140lm/w |
| LED | SMD2835 |
| CCT | 3000K/4000K/5000K/6000K |
| CRI | >80 |
| Beam Angle | 120 degree |
ELECTRICAL:
| Input power Supply | AC220-240V, 50/60Hz | ||
| Power Factor | > 0.9 | ||
| Lifespan@Ta25°(L70) | 54,000 hours | ||
| Electrical Classification | Class I | ||
| Package Dimensions | 690*116*97mm | 1280*116*97mm | 1580*116*92mm |
This LED Waterproof Batten Light Fixture is widely used in commercial space, fire stairs, back of house, underground passage, parking lots.
