Product Details
Place of Origin: Shenzhen, China
Brand Name: COMLED
Certification: CE, Rosh, SAA
Model Number: ZL-USBPL44-5FT-CES
Payment & Shipping Terms
Minimum Order Quantity: 300pcs
Price: US$45.5-US$54.6 /piece
Delivery Time: 7-30 days(sample around 3-7 days)
Payment Terms: T/T
Supply Ability: 12000pcs per month
CCT: |
3000K/4000K/5000K/6000K |
Connection Type: |
Terminal Block |
LED: |
SMD2835 |
Beam Angle: |
120 Degree |
Useful Life@Ta25°(L70): |
54,000 Hours |
Dimming Option: |
Microwave Sensor - 3 Stepped Version(100%-20%-OFF) |
CCT: |
3000K/4000K/5000K/6000K |
Connection Type: |
Terminal Block |
LED: |
SMD2835 |
Beam Angle: |
120 Degree |
Useful Life@Ta25°(L70): |
54,000 Hours |
Dimming Option: |
Microwave Sensor - 3 Stepped Version(100%-20%-OFF) |

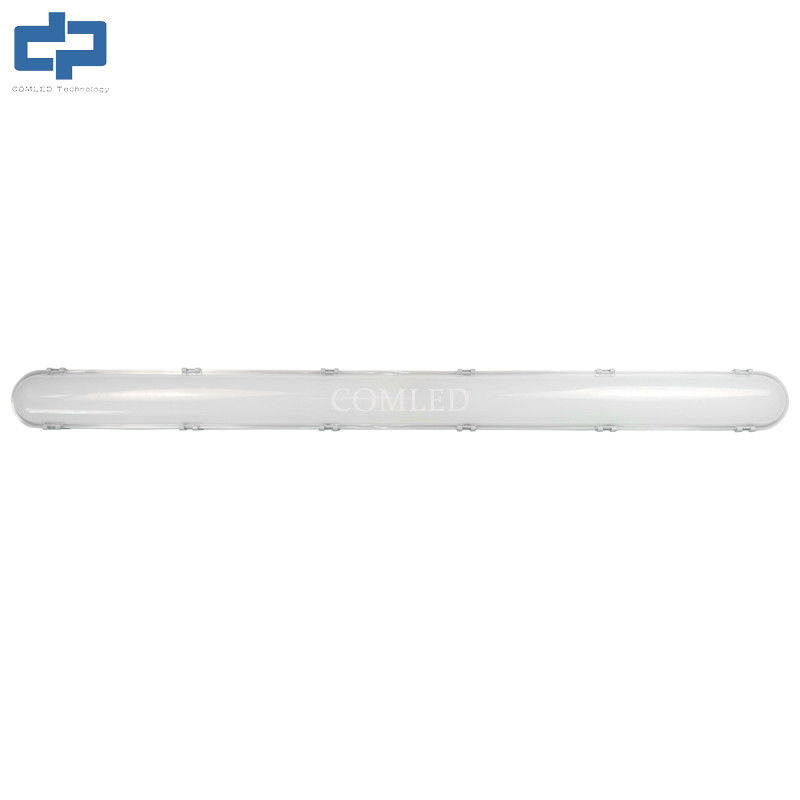

1500mm LED Compact Batten Fixture , 42-44W Car Park LED Batten Lights 110 - 140lm / W
The 1500mm LED Compact Batten Fixture is an energy-efficient lighting solution designed for car parks and other demanding environments. With a power range of 42-44W and a luminous efficacy of 110-140 lm/w, this batten light integrates advanced SMD LED technology to ensure high performance. Its robust polycarbonate housing and diffuser offer superior durability, with IP65 and IK08 protection, making it suitable for fire stairs, rail stations, supermarkets, corridors, and especially parking lots and basements.
Durable Construction: Made from high-quality polycarbonate, the housing and diffuser offer exceptional waterproof and impact-resistant protection (IP65/IK08), ensuring reliability in harsh conditions.
Efficient Lighting: Utilizing SMD2835 LED chips with a luminous efficacy of 110-140 lm/w, the fixture provides bright, even light while conserving energy, making it ideal for commercial and industrial use.
Flexible Mounting Options: The batten fixture supports both surface mounting and suspension installations, providing versatility to suit different spaces.
Smart Controls Available: Optional 5.8G HF sensor dimming and emergency lighting functions offer enhanced energy savings and safety, especially in high-traffic areas such as car parks and corridors.
Easy Installation: Equipped with a quick terminal block, the batten light simplifies wiring, reducing installation time and cost, while linkable connection options make it adaptable for larger lighting projects.
| Model | Input voltage | Watt | Sensor Dimming standby | Emergency |
| ZL-USBPL18-2FT-CN | AC200 - 240V | 18w | x | x |
| ZL-USBPL36-4FT-CN | AC200 - 240V | 36w | x | x |
| ZL-USBPL44-5FT-CN | AC200 - 240V | 44w | x | x |
| ZL-USBPL18-2FT-DS | AC200 - 240V | 18w | 100% / 20% /OFF | x |
| ZL-USBPL36-4FT-DS | AC200 - 240V | 36w | 100% / 20% /OFF | x |
| ZL-USBPL44-5FT-DS | AC200 - 240V | 44w | 100% / 20% /OFF | x |
| ZL-USBPL18-2FT-CE | AC200 - 240V | 18w | x | >3hrs@3.6W / >3hrs@2W |
| ZL-USBPL36-4FT-CE | AC200 - 240V | 36w | x | >3hrs@3.6W / >3hrs@2W |
| ZL-USBPL44-5FT-CE | AC200 - 240V | 44w | x | >3hrs@3.6W / >3hrs@2W |
| ZL-USBPL18-2FT-DES | AC200 - 240V | 18w | 100% / 20% /OFF | >3hrs@3.6W / >3hrs@2W |
| ZL-USBPL36-4FT-DES | AC200 - 240V | 36w | 100% / 20% /OFF | >3hrs@3.6W / >3hrs@2W |
| ZL-USBPL44-5FT-DES | AC200 - 240V | 44w | 100% / 20% /OFF | >3hrs@3.6W / >3hrs@2W |
| Note: x -No this function | ||||
| LUMINAIRE INFORMATION | |||
| Model | ZL-USBPL18-2FT | ZL-USBPL36-4FT | ZL-USBPL44--5FT |
| Rated Power | 18W | 36W | 44W |
| Install | Surface Mount/Suspended/Linkable | ||
| Protection Rating | IP65 IK08 | ||
| Housing | Polycarbonate | ||
| Optics | Polycarbonate Milky Diffuser | ||
| Connection Type | Terminal Block | ||
| Operating Temperature | -20℃ to 40℃(Emergency version: 0℃ to 40℃) | ||
| Warranty | 3 Years(battery for 1 year) | ||
| Dimming Option | Microwave Sensor - 3 Stepped Version(100%-20%-OFF) | ||
| Emergency Option | 3 Hours+ @2W LiFePO4 Battery | ||
| PHOTOMETRIC | |||
| Luminous Efficacy | 110-140lm/w | ||
| LED | SMD2835 | ||
| CCT | 3000K/4000K/5000K/6000K | ||
| CRI | >80 | ||
| Beam Angle | 120 degree | ||
| ELECTRICAL | |||
| Input power Supply | AC200-240V, 50/60Hz | ||
| Power Factor | > 0.9 | ||
| Useful Life@Ta25°(L70) | 54,000 hours | ||
| Electrical Classification | Class I | ||
| Dimensions | 650*100*90mm | 1260*100*90mm | 1560*100*90mm |
Metro Station |
Parking Lot |
Stair well |
Corridor |
Supermarkets |
