Product Details
Place of Origin: Shenzhen, China
Brand Name: COMLED
Certification: CE ROHS SAA and C-Tick (RCM)
Model Number: ZL-PSBLP18-2FT-CS-3CCT
Payment & Shipping Terms
Minimum Order Quantity: 300pcs
Price: US$29.4-US$35.28 /piece
Packaging Details: Package: 73*40*30cm/ 9pcs, 20'GP/ 2877pcs
Delivery Time: 7-30 days(sample around 3-7 days)
Payment Terms: T/T
Supply Ability: 10000pcs per month
Rated Power: |
20W |
Input Power Supply(v): |
110 Or 230 |
Protection Rating: |
IP65 IK08 |
Luminous Efficacy: |
110-140 Lm/w |
CCT: |
3000K - 4000K - 6000K |
Package Dimensions: |
690*116*92mm |
Install: |
Surface Mount, Suspended |
Sensor Dimming: |
Yes |
Diffuser Color: |
Milk White |
Material: |
Polycarbonate |
Working Temperature(℃): |
-20 - +45 |
Application: |
Factory , Warehouse , Office |
Rated Power: |
20W |
Input Power Supply(v): |
110 Or 230 |
Protection Rating: |
IP65 IK08 |
Luminous Efficacy: |
110-140 Lm/w |
CCT: |
3000K - 4000K - 6000K |
Package Dimensions: |
690*116*92mm |
Install: |
Surface Mount, Suspended |
Sensor Dimming: |
Yes |
Diffuser Color: |
Milk White |
Material: |
Polycarbonate |
Working Temperature(℃): |
-20 - +45 |
Application: |
Factory , Warehouse , Office |

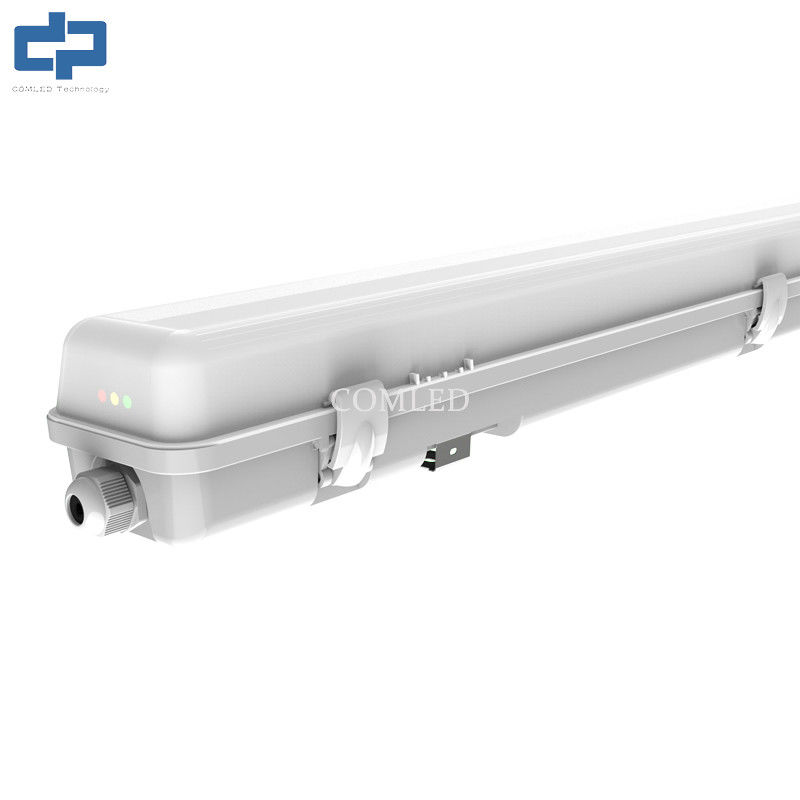

Our milk white diffuser weatherproof batten light is designed with versatility and durability in mind, offering excellent performance in demanding environments. The luminaire integrates advanced SMD LED technology to deliver high lumen output while ensuring energy efficiency and glare reduction. It is available with sensor dimming and CCT changeable options, making it an ideal lighting solution for areas such as parking lots, tunnels, railway or metro stations, and basements where adaptability and reliability are essential.
Durable Construction: Built with a high-grade polycarbonate housing and diffuser, the fixture is IP65 and IK08 rated, ensuring robust protection against water, dust, and impact.
Sensor Dimming: Equipped with a 5.8G microwave sensor, the light offers three-step dimming functionality (100%-20%-OFF) for energy savings and enhanced control.
CCT Changeable: The fixture supports customizable color temperature (3000K/4000K/5000K/6000K), allowing flexibility in different applications.
High Efficiency: Using 220lm/w SMD2835 LED chips, this luminaire delivers high luminous efficacy with reduced glare for improved visibility.
Easy Installation & Maintenance: Featuring surface-mounted or hanging installation options, with clip-fixed drivers for quick replacement and a large terminal block for simplified wiring.
| Model | Input voltage | Watt | Sensor Dimming standby | Emergency |
| ZL-PSBLP18-2FT-CN | AC110V or 230V | 18w | x | x |
| ZL-PSBLP36-4FT-CN | AC110V or 230V | 36w | x | x |
| ZL-PSBLP44-5FT-CN | AC110V or 230V | 44w | x | x |
| ZL-PSBLP18-2FT-CS | AC110V or 230V | 18w | 100% / 20% /OFF | x |
| ZL-PSBLP36-4FT-CS | AC110V or 230V | 36w | 100% / 20% /OFF | x |
| ZL-PSBLP44-5FT-CS | AC110V or 230V | 44w | 100% / 20% /OFF | x |
| ZL-PSBLP18-2FT-CE | AC110V or 230V | 18w | x | >3hrs@3.6W |
| ZL-PSBLP36-4FT-CE | AC110V or 230V | 36w | x | >3hrs@3.6W |
| ZL-PSBLP44-5FT-CE | AC110V or 230V | 44w | x | >3hrs@3.6W |
| ZL-PSBLP18-2FT-CES | AC110V or 230V | 18w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-PSBLP36-4FT-CES | AC110V or 230V | 36w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-PSBLP44-5FT-CES | AC110V or 230V | 44w | 100% / 20% /OFF | >3hrs@3.6W |
| Note: x -No this function | ||||
PHOTOMETRIC:
| Luminous Efficacy | 110-140lm/w |
| LED | SMD2835 |
| CCT | 3000K/4000K/5000K/6000K |
| CRI | >80 |
| Beam Angle | 120 degree |
ELECTRICAL:
| Input power Supply | AC220-240V, 50/60Hz | ||
| Power Factor | > 0.9 | ||
| Lifespan@Ta25°(L70) | 54,000 hours | ||
| Electrical Classification | Class I | ||
| Package Dimensions | 690*116*97mm | 1280*116*97mm | 1580*116*92mm |
This LED Waterproof Batten Light Fixture is widely used in commercial space, fire stairs, back of house, underground passage, parking lots.
