Product Details
Place of Origin: Shenzhen, China
Brand Name: COMLED
Certification: CE SAA and C-Tick (RCM)
Model Number: ZL-JTBLP9-2FT-CS
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: US$25.8-US$30.96 /piece
Packaging Details: Package: 67.5cm*36.1cm*41cm/ 6pcs, 20'GP/ 1682pcs
Delivery Time: 7-30 days(sample around 3-7 days)
Payment Terms: T/T
Supply Ability: 10000pcs per month
Rated Power （Led Tube）: |
1x9W |
Install: |
Surface Mount/Suspended/Linkable |
Protection Rating: |
IP20 |
Housing: |
Steel With Coating |
Optics: |
Polycarbonate Milky Diffuser |
Connection Type: |
Terminal Block Or Linkable |
Operating Temperature: |
-20℃ To 40℃(Emergency Version: 0℃ To 40℃) |
Warranty: |
3 Years(battery For 1 Year) |
Dimming Option: |
Microwave Sensor - 3 Stepped Version(100%-20%-OFF) |
Emergency Option: |
3 Hours+ @3W LiFePO4 Battery |
Luminous Efficacy: |
120lm/w |
LED: |
SMD2835 |
CCT: |
2800K-6500K |
CRI: |
>80 |
Beam Angle: |
120 Degree |
Input Power Supply: |
AC200-240V, 50/60Hz Or AC100-277V, 50/60Hz |
Power Factor: |
> 0.9 |
Lifespan@Ta25°(L70): |
54,000 Hours |
Electrical Classification: |
Class I |
Dimensions: |
650*113*96mm |
Rated Power （Led Tube）: |
1x9W |
Install: |
Surface Mount/Suspended/Linkable |
Protection Rating: |
IP20 |
Housing: |
Steel With Coating |
Optics: |
Polycarbonate Milky Diffuser |
Connection Type: |
Terminal Block Or Linkable |
Operating Temperature: |
-20℃ To 40℃(Emergency Version: 0℃ To 40℃) |
Warranty: |
3 Years(battery For 1 Year) |
Dimming Option: |
Microwave Sensor - 3 Stepped Version(100%-20%-OFF) |
Emergency Option: |
3 Hours+ @3W LiFePO4 Battery |
Luminous Efficacy: |
120lm/w |
LED: |
SMD2835 |
CCT: |
2800K-6500K |
CRI: |
>80 |
Beam Angle: |
120 Degree |
Input Power Supply: |
AC200-240V, 50/60Hz Or AC100-277V, 50/60Hz |
Power Factor: |
> 0.9 |
Lifespan@Ta25°(L70): |
54,000 Hours |
Electrical Classification: |
Class I |
Dimensions: |
650*113*96mm |

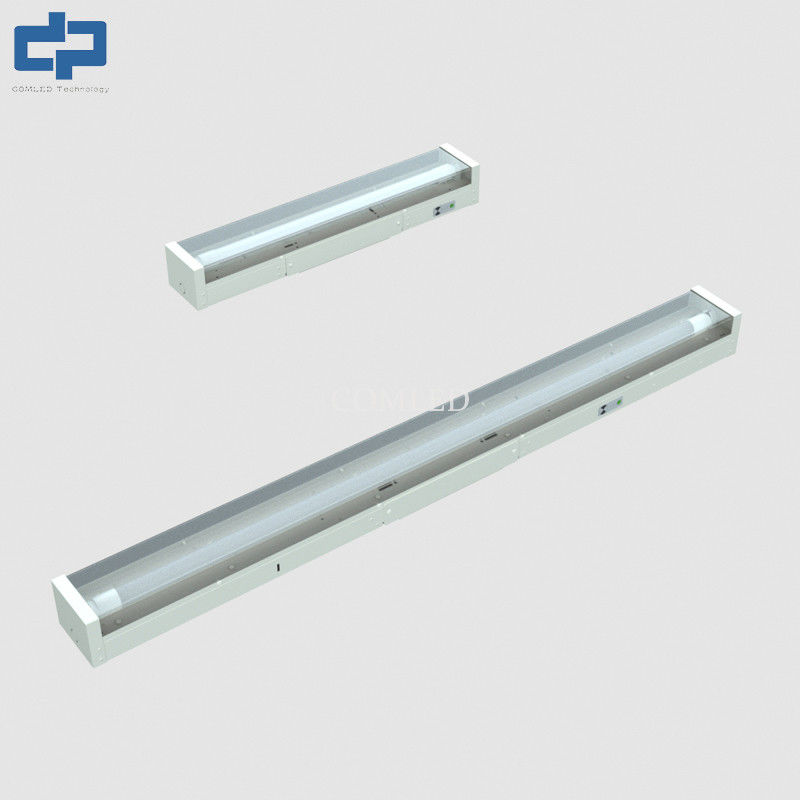

2FT T8 Single Tube Light Fixture With Sensor , LED T8 Batten Ceiling Light Fitting
This fitting offers high quality construction with white coating steel body and high strength wire guard, Incorporating standard LED T8 tube technology. Its’ sliding mounting and wiring patent design was made for super easy installation and mantainence. It is available in various styles : with single tube or duoble tube , 2FT/4FT, with wired gaurd /Pramasitc lens / transparent PC lens / bare. Function can be Standard version, microwave sensor dimming version, emergency version, DALI version . Ideal product for Replace existing fluorescent fixtures to LED technology fixture in most applications.
◆0.5mm thickness steel housing with white coating
◆Steel wire guard for protection IP20 rate
◆Small Seperate fixed plate with Huge terminal block and safety hookers for easy installation
◆Innovation design for sliding installation of housing body without wiring,easy mantainence
◆easy openable backside design for quick mantainance.
◆2FT,4FT and Single tube or Double tube option
◆Single end power in,PC+AL heat sink led tube, more safety
◆Bridge wiring in fitting, no need consider power direction of tube
◆Smart inverter for multi-function (option)
◆5.8G HF microwave Sensor dimming function (option).
◆Emergency function,battery with special housing for quick maintenance (option)
◆Approved by CE SAA and C-Tick (RCM).
◆5 years warranty
| Model | Input voltage | Watt | Sensor dimming standby | Emergency |
| ZL-JTBLP9-2FT-CN | AC110V or 230V | 1*9w | x | x |
| ZL-JTBLP18-4FT-CN | AC110V or 230V | 1*18w | x | x |
| ZL-JTBLP18-2FT-CN | AC110V or 230V | 2*9w | x | x |
| ZL-JTBLP36-4FT-CN | AC110V or 230V | 2*18w | x | x |
| ZL-JTBLP9-2FT-CS | AC110V or 230V | 1*9w | 100% / 20% /OFF | x |
| ZL-JTBLP18-4FT-CS | AC110V or 230V | 1*18w | 100% / 20% /OFF | x |
| ZL-JTBLP18-2FT-CS | AC110V or 230V | 2*9w | x | |
| ZL-JTBLP36-4FT-CS | AC110V or 230V | 2*18w | x | |
| ZL-JTBLP9-2FT-CE | AC110V or 230V | 1*9w | x | >3hrs@3.6W |
| ZL-JTBLP18-4FT-CE | AC110V or 230V | 1*18w | x | >3hrs@3.6W |
| ZL-JTBLP18-2FT-CE | AC110V or 230V | 2*9w | x | >3hrs@3.6W |
| ZL-JTBLP36-4FT-CE | AC110V or 230V | 2*18w | x | >3hrs@3.6W |
| ZL-JTBLP9-2FT-CES | AC110V or 230V | 1*9w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-JTBLP18-4FT-CES | AC110V or 230V | 1*18w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-JTBLP18-2FT-CES | AC110V or 230V | 2*9w | >3hrs@3.6W | |
| ZL-JTBLP36-4FT-CES | AC110V or 230V | 2*18w | >3hrs@3.6W | |
| Note: x -No this function | ||||
| Model | ZL-JTBLP9-2FT | ZL-JTBLP18-2FT | ZL-JTBLP18-4FT | ZL-JTBLP36-4FT |
|
Rated Power (Led tube) |
1x9W | 2x9W | 1x18W | 2x18W |
| Install | Surface Mount/Suspended/Linkable | |||
| Protection Rating | IP20 | |||
| Housing | Steel with Coating | |||
| Optics | Polycarbonate Milky Diffuser | |||
| Connection Type | Terminal Block or Linkable | |||
| Operating Temperature | -20℃ to 40℃(Emergency version: 0℃ to 40℃) | |||
| Warranty | 3 Years(battery for 1 year) | |||
| Dimming Option | Microwave Sensor - 3 Stepped Version(100%-20%-OFF) | |||
| Emergency Option | 3 Hours+ @3W LiFePO4 Battery | |||
| PHOTOMETRIC | ||||
| Luminous Efficacy | 100-120lm/w | |||
| LED | SMD2835 | |||
| CCT | 3000K/4000K/5000K/6000K | |||
| CRI | >80 | |||
| Beam Angle | 120 degree | |||
| ELECTRICAL | ||||
| Input power Supply | AC200-240V, 50/60Hz | |||
| Power Factor | > 0.9 | |||
| Lifespan@Ta25°(L70) | 54,000 hours | |||
| Electrical Classification | Class I | |||
| Dimensions | 650*113*96mm | 650*113*96mm | 1260*113*96mm | 1260*113*96mm |
| Removable Back Plate |
Quick Installation |
| Huge terminal block for holding multiple wires |
Plug and play connection |
| Special housing for quick replace battery |
