Product Details
Place of Origin: Shenzhen, China
Brand Name: COMLED
Certification: FCC,ETL,CE,SAA,AS2293.3,Rosh
Model Number: ZL-CBSCLP30-CE-V1
Payment & Shipping Terms
Minimum Order Quantity: 300pcs
Price: EXW US$ 38.9/piece - US$ 46.68/piece
Delivery Time: 7-30 days(sample around 3-7 days)
Payment Terms: T/T
Supply Ability: 8000pcs per month
Rated Power: |
18W / 30W |
Install: |
Surface Mount |
Protection Rating: |
IP65 |
Housing: |
Steel With Coating |
Warranty: |
3 Years(battery For 1 Year) |
Luminous Efficacy: |
118-140lm/w |
CCT: |
3000K/4000K/5000K/6000K |
Input Power Supply: |
AC100-277V, 50/60Hz |
Dimensions: |
Ф300*100 |
Emergency (Option): |
3 Hours+ @3W Or 90mins+ @ 7--15W LiFePO4 Battery |
Rated Power: |
18W / 30W |
Install: |
Surface Mount |
Protection Rating: |
IP65 |
Housing: |
Steel With Coating |
Warranty: |
3 Years(battery For 1 Year) |
Luminous Efficacy: |
118-140lm/w |
CCT: |
3000K/4000K/5000K/6000K |
Input Power Supply: |
AC100-277V, 50/60Hz |
Dimensions: |
Ф300*100 |
Emergency (Option): |
3 Hours+ @3W Or 90mins+ @ 7--15W LiFePO4 Battery |

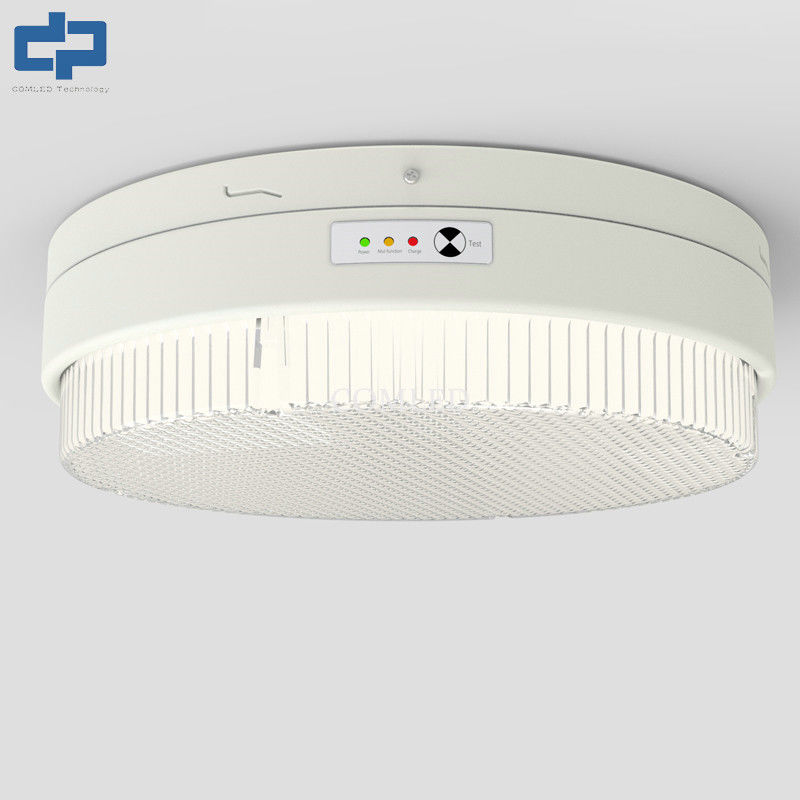

LED Emergency Ceiling Light , Wall Or Ceiling Surface-Mounted Fitting , 118LM / W - 140LM / W , AC100 - 277V , 3000K / 4000K / 5000K / 6000K,
LED Emergency Ceiling Light is a versatile and reliable lighting solution designed for both ceiling and wall-mounted installations. With a sleek, durable design and high luminous efficacy ranging from 118LM/W to 140LM/W, this fitting ensures bright and energy-efficient lighting in any emergency situation. Suitable for a wide range of applications, including stairwells, hallways, warehouses, and commercial spaces, this LED emergency light provides consistent illumination in times of power failure. Available in multiple color temperatures (3000K, 4000K, 5000K, 6000K), it caters to both functional and aesthetic lighting needs.
The light operates on an AC100-277V input voltage, making it compatible with a wide range of electrical systems. Additionally, the emergency version comes with a built-in backup battery, ensuring continued operation during power outages. Whether installed in schools, offices, industrial sites, or public facilities, this LED ceiling light ensures safety and visibility, enhancing both security and convenience.
Emergency Functionality with Built-in Backup Battery: Equipped with a high-quality LiFePO4 battery, this light provides over 90 minutes of emergency illumination at 7-15W, ensuring reliable performance during power outages.
High Luminous Efficacy: With a range of 118LM/W to 140LM/W, this LED light offers superior brightness while maintaining energy efficiency, making it an excellent choice for large spaces requiring constant, reliable lighting.
Wide Voltage Range (AC100-277V): The light can be used in both residential and commercial applications across various voltage systems, offering flexibility for diverse installation environments.
Multiple Color Temperatures Available: Choose from four different color temperatures—3000K (warm white), 4000K (neutral white), 5000K (cool white), or 6000K (daylight)—to create the ideal lighting ambiance for any application.
Surface-Mounted Installation: This versatile light fixture can be easily installed on both ceilings and walls, offering flexibility in installation and making it ideal for a wide range of environments, including corridors, warehouses, and stairwells.
Model | Input voltage | Watt | Sensor Dimming standby | Emergency |
ZL-CASCLP30-CN-V2 | AC200-240V | 18W/30W | x | x |
ZL-CBSCLP30-CN-V2 | AC200-240V | 18W/30W | x | x |
ZL-CASCLP30-CS-V2 | AC200-240V | 18W/30W | 100% / 20% /OFF | x |
ZL-CBSCLP30-CS-V2 | AC200-240V | 18W/30W | 100% / 20% /OFF | x |
ZL-CASCLP30-CE-V2 | AC200-240V | 18W/30W | x | >3hrs@3W |
ZL-CBSCLP30-CE-V2 | AC200-240V | 18W/30W | x | >3hrs@3W |
ZL-CASCLP30-CES-V2 | AC200-240V | 18W/30W | 100% / 20% /OFF | >3hrs@3W |
ZL-CBSCLP30-CES-V2 | AC200-240V | 18W/30W | 100% / 20% /OFF | >3hrs@3W |
ZL-CASCLP30-CN-V1 | AC100-277V | 18W/30W | x | x |
ZL-CBSCLP30-CN-V1 | AC100-277V | 18W/30W | x | x |
ZL-CASCLP30-CS-V1 | AC100-277V | 18W/30W | 100% / 20% /OFF | x |
ZL-CBSCLP30-CS-V1 | AC100-277V | 18W/30W | 100% / 20% /OFF | x |
ZL-CASCLP30-CE-V1 | AC100-277V | 18W/30W | x | >90min@7-15W |
ZL-CBSCLP30-CE-V1 | AC100-277V | 18W/30W | x | >90min@7-15W |
ZL-CASCLP30-CES-V1 | AC100-277V | 18W/30W | 100% / 20% /OFF | >90min@7-15W |
ZL-CBSCLP30-CES-V1 | AC100-277V | 18W/30W | 100% / 20% /OFF | >90min@7-15W |
Note: x -No this function |
LUMINAIRE INFORMATION | ||
Model | ZL-CASCLP30-XX | ZL-CBSCLP30-XX |
Rated Power | 18W / 30W | 18W / 30W |
Install | Surface Mount | |
Protection Rating | IP65 | |
Housing | Steel with Coating | |
Optics | Polycarbonate Diffuser | |
Connection Type | Terminal Block | |
Operating Temperature | -20℃ to 40℃(Emergency version: 0℃ to 40℃) | |
Warranty | 3 Years(battery for 1 year) | |
Half-power Function | 18W or 30W can be set by DIP switch | |
Dimming (Option) | Microwave Sensor - 3 Stepped Version(100%-20%-OFF) | |
Emergency (Option) | 3 hours+ @3W or 90mins+ @ 7--15W LiFePO4 Battery | |
PHOTOMETRIC | ||
Luminous Efficacy | 118-140lm/w | |
LED | SMD2835 | |
CCT | 3000K/4000K/5000K/6000K | |
CRI | 85 | |
Beam Angle | 120 degree | |
ELECTRICAL | ||
Input power Supply | AC200-240V, 50/60Hz or AC100-277V, 50/60Hz | |
Power Factor | > 0.9 | |
Useful Life@Ta25°(L70) | 54,000 hours | |
Electrical Classification | Class I | |
Dimensions | Ф300*88 | Ф300*100 |
Widely used in indoor restaurants, bathrooms, corridors, balconies, stairwells, supermarkets, shopping malls and so on.
Stair Well |
Corridor |
Tunnel |
